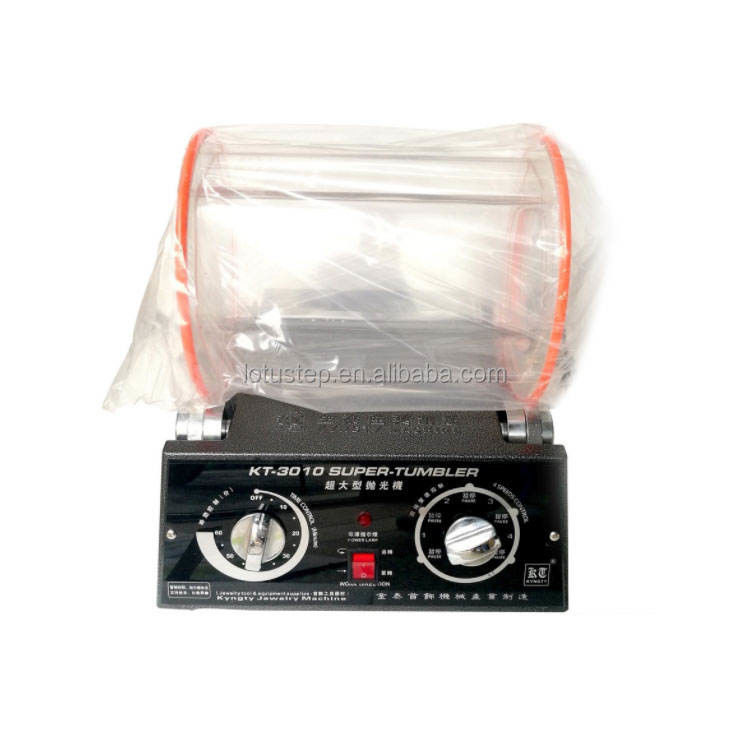

Rolling Drum Jewelry Polishing Machine 110V/220V Rotary Barrel Tumbling Machine

KT-3010 Rolling Drum Polishing Machine Jewelry Vibratory Tumbler Barrel Rotary Tumbling Machine Jewelry Polisher Capacity 12kgs

Technical Parameters

Voltage: 110V/220V,

Machine size: 350*350*360mm,

Barrel length: 300mm,

Barrel diameter: 200mm,

Barrel capacity: 12kgs,

Barrel material: Plexiglass,

Machine weight: 18kgs.

Designed specifically for timing polishing, automatic bi-directional rotation-time 0-60 minutes, withdraw at the end polished trim, with four different speed settings, so that precious jewelry get more care treatment.

How To Load Rotary Barrels For Metal Workpieces

Effective and professional results from your tumbling processes depends on knowing how to properly load your barrel for the best result. Follow these steps to achieve the best finish and most cost-effective process for your jewelry pieces using your rotary tumbler.

How to Setup

These tumblers come fully assembled. Simply place the tumbler base on a sturdy, level work surface.

Step 1: Set the barrel on end and remove the lid.

Step 2: Add steel media to the barrel depend on the max capacity

Step 3: Add your workpieces using 1 part workpieces to 4 parts media, by volume.

Step 4: Add your compound solution to the barrel, filling the barrel to about 1/2" above the level of the media. (Follow instructions on the label of the compound you're using to mixing the solution properly.)

Step 5: Secure the lid onto the barrel. Position barrel between roller guides.

Step 6: Position barrel between roller guides and start tumbling.

Step 7: Tumbling for no more than 120 minutes.

Step 8: Rinse the workpieces, stainless steel shot and the tumbler barrel. Dry the workpieces.

Warning

Rotating rollers can be dangerous. Turn the rollers off when loading the barrel. Tie hair securely behind the head and wear snug-fitting garments. Keep hair and loose clothing away from the machine at all times.
