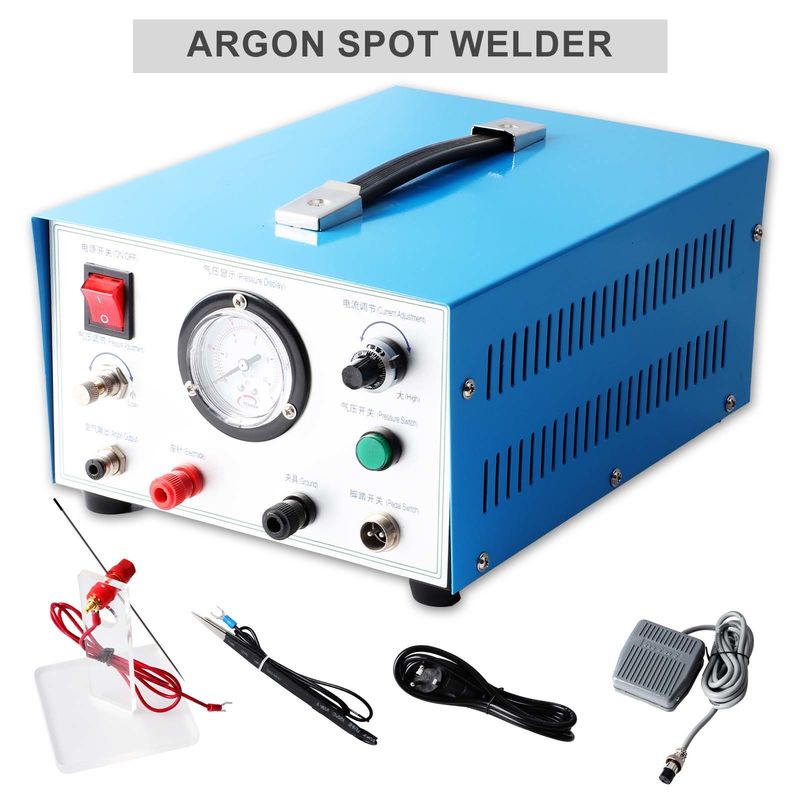

500W Jewelry Welding Machine 110V/220V Pulse Argon Spot Welder

Jewelry Argon Spot Welding Machine Adjustable Pulse Sparkle 500W Soldering

Adjustable pulse spot welder (welding machine)
Power: AC220V
Power: 500W
Welding current: 0-50A continuously adjustable (pulse)
Standard accessories: power cord, foot switch, workpiece clamp, tungsten needle holder, tungsten steel needle
Use range: stainless steel, titanium, all of which are weak arc welding metals can be welded.

Instructions:

Before using the welder, check that the power supply meets the operating voltage. Connect the corresponding output polarity of the welder output wiring (tighten the nut when the output wire is connected to the output pole). When working, clamp the workpiece with the clip on the output black line, close to the tungsten needle. The distance depends on the size and shape of the workpiece. Generally, the distance between the tungsten needle and the workpiece is between 0.5 and 1 mm. After the welding position is fixed, the foot is clicked. When the switch is turned on, a high-temperature arc is generated between the workpiece and the tungsten needle to weld the workpiece. The discharge end of the tungsten needle must be kept sharp before use and during use to maintain a
good discharge state.

According to the size of the workpiece, the size of the solder joints, and the process requirements, the welding can change the output pulse current to achieve the desired effect (the machine can weld 0.5-1.5MM). When the potentiometer is rotated clockwise (coarse adjustment, fine adjustment), the output pulse current increases, and the output pulse current decreases.

Precautions:

If the place where the welder is placed is wet or not used for a long time, it will be damp. If it is found that the above phenomenon should be dried after use, the machine should be well grounded. Please pay attention to safety when using.

Product Size:220*300*150mm

Product Weight:6kg

FAQ

1: How you guarantee tumbling media quality?

We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.

For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.

2: What is your Payment method?

Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;

Accept L/C at sight (bulk order).

3: What is your Minimum order amount?

For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.

You can ship less amount of media if ship with the machine.

Sample order is allowed to ship less amount of tumbling media

4: What is your way of packaging?

Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag

Customize packaging and logo printing is available for discuss

Wooden box for equipment and compound

5: How long is your production time?

15 working days for sample order;

20-25 working days for bulk order.

Emergency order can be fulfilled in a week
