Product Details
Place of Origin: CHINA
Brand Name: TOKTOS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $120
Payment Terms: T/T
Supply Ability: 9999
Material: |
Metal |
Voltage: |
110V/220V |
Power: |
500W |
Weight: |
5.5KG |
Working Distance: |
0.5-1.0mm |
Welding Range: |
0.6-1.2mm |
Product Size: |
30*23*17cm |
Usage: |
Spot Welding |
Material: |
Metal |
Voltage: |
110V/220V |
Power: |
500W |
Weight: |
5.5KG |
Working Distance: |
0.5-1.0mm |
Welding Range: |
0.6-1.2mm |
Product Size: |
30*23*17cm |
Usage: |
Spot Welding |

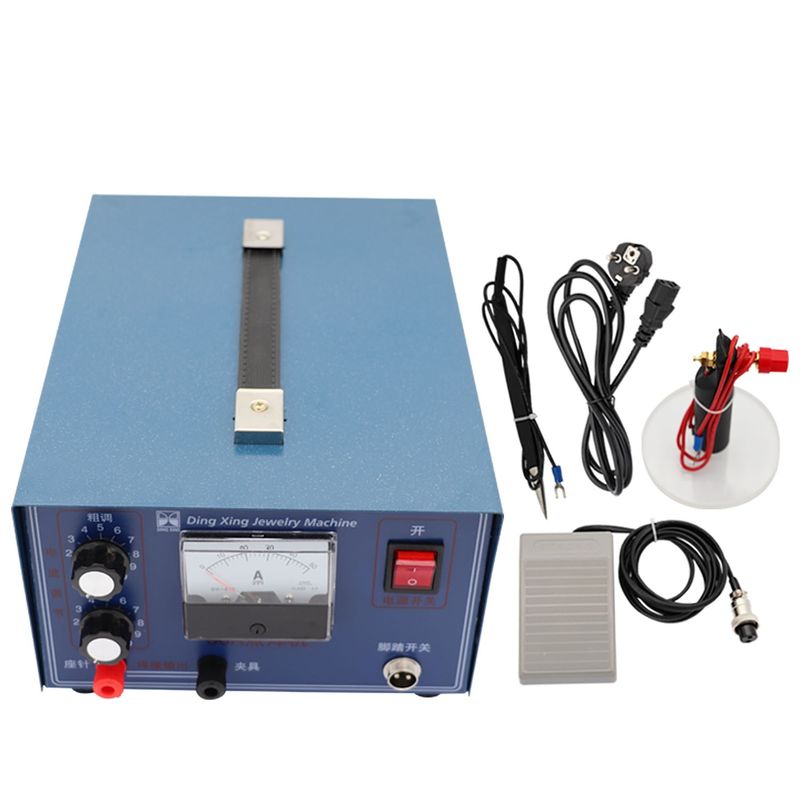

50A Jewelry Spot Welding Machine Soldering Tools and Equipmet
Product Description:
Spot welding machine can be used for platinum. Gold. K gold. Silver. Steel rapid welding, the ring mouth, melon seeds buckle. Fine wire precision welding, direct welding without welding powder.
The use of plasma high-frequency discharge principle, in the metal welding port instantly forming molten pool
Adjust the output power according to the wire size
The welding of the workpiece smooth, solid, fast, high efficiency
Installation and commissioning:
1. Electrode clamping output negative electrode, the electrode seat output positive pole.
2. Tungsten needle can be sharpened in the grinding machine, the use of cutting-edge discharge principle.
3 tungsten needle diameter 1.5mm
Steps:
1. Turn on the power and turn on the power switch.
2. Adjust the power knob, divided into coarse and fine. According to the work requirements can be adjusted scale value
3. The workpiece is aligned with the tweezers. The workpiece interface is aligned with the tungsten needle (the optimum distance is 5mm).
4. With the foot pedal switch (remove the foot). Spot welding is completed.
Input voltage:110V/220V
Power:500W
Output current:0.5-30A
Weight:5.5kg
Welding diameter range:0.6-1.2mm
Applicable metal:Gold, silver, platinum and copper
Working distance:0.5-1.0mm (Between needle and workpiece)
STANDARD ACCESSORIES -
1 x Main Unit /
1 x Power Cord /
1 x Foot Pedal /
1 x Set Accessories /.
Product Size: 30*23*17cm
FAQ
1: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
2: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).
3: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
4: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
5: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
