Product Details
Place of Origin: CHINA
Brand Name: TOKTOS
Model Number: DX-30A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100
Payment Terms: T/T
Supply Ability: 9999
Power: |
400W |
Voltage: |
110V/220V |
Maximum Current: |
30A |
Dimension: |
310*165*140MM |
Color: |
Yellow |
Usage: |
Spot Welding |
Ampere: |
0.5-30A |
Weight: |
4.5 KG |
Power: |
400W |
Voltage: |
110V/220V |
Maximum Current: |
30A |
Dimension: |
310*165*140MM |
Color: |
Yellow |
Usage: |
Spot Welding |
Ampere: |
0.5-30A |
Weight: |
4.5 KG |

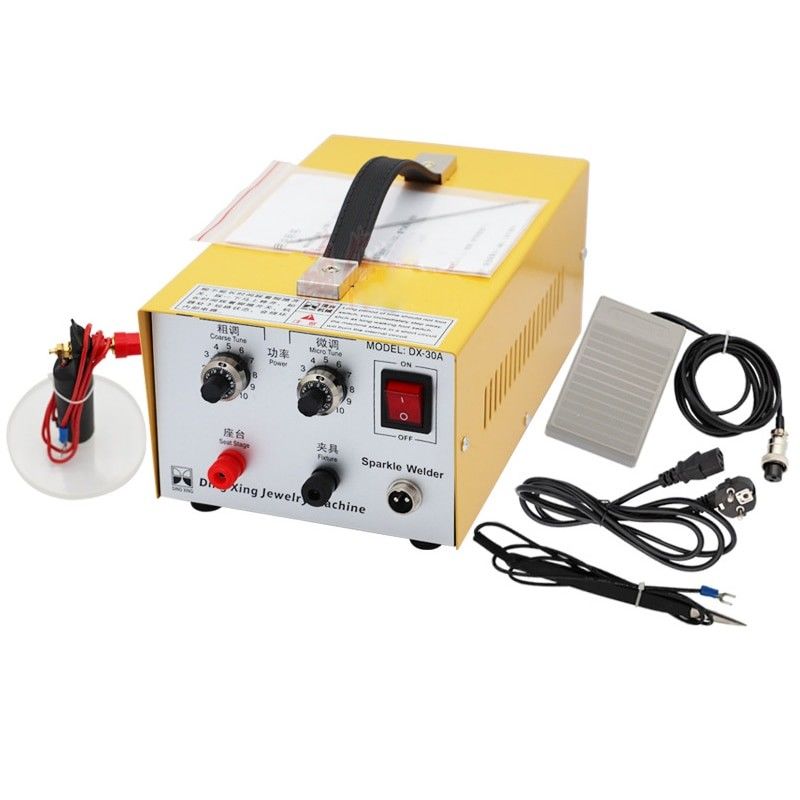

Jewelry Tools Spot Welder 30A Pulse Sparkle Welding Machine Handheld Laser
Product Name: 30A spot welder
Applicable voltage: 110V / 220V
Welding range: 0.4-1.omm
Product weight: 4.5kg
Package size: 35 * 20 * 14cm
Product Description:
Spot welding machine can be used for rapid welding of platinum, gold, K gold, silver, copper and iron, and precision welding of ring mouth, melon seed buckle and thin wire material, direct welding does not need welding powder.
1. Using the principle of plasma high frequency discharge, the molten pool is formed instantly at the metal weld joint.
2. Adjust the output power according to different size of wire rod.
3. The welding workpiece is smooth, firm, fast and efficient. Desire to return to beans
Usage method:
Before using the welding machine, check whether the power supply conforms to the use voltage. Connect the corresponding polarity screw to the output wiring of the welding machine (tighten the nut when the output line is connected to the output pole). When working, clamp the workpiece with the clamp on the output black line, close to the tungsten needle, and the distance depends on the size and shape of the workpiece. Generally, the distance between the tungsten needle and the workpiece is between 0.5-1 mm. After the welding position is set, the foot switch is jogged, and the high-temperature arc is generated between the workpiece and the tungsten needle, and the workpiece is fused and welded instantly. The discharge end of tungsten needle must be sharp before and during use to keep it in good discharge state. Welding can be based on the size of the workpiece, solder joint size, process requirements, change the size of the output pulse current to achieve the desired effect, clockwise rotation (coarse adjustment, fine adjustment) of the electricity
The output pulse current increases when the position detector is used, otherwise the output pulse current decreases.
matters needing attention:
1. If the place where the welding machine is placed is wet or not used for a long time, there will be damp phenomenon. If the above phenomenon is found during use, it should be dried before use, and the machine should be well grounded. Please pay attention to safety when using.
2. The foot cannot step on the foot switch for a long time. If you step on the switch for a long time and the machine is in a short circuit state, the internal circuit will be burned out.
3. The machine is precise, please use it sparingly.
4. Flash is harmful to eyes. Please take protective measures when using it
5. When stepping on the foot switch, do not touch the metal parts of tungsten needle and tweezers at the same time, otherwise there will be a sense of acupuncture.
6. Non professionals, please do not dismantle and repair, there is high voltage inside
